Blister Packaging Line with Cartoner TLT 1560 C | Bosch
Bosch TLT 1560 C blister packaging line, combining a thermoforming blister machine with an integrated cartoning machine
- Watch the product:
- Add feedback:
-
Availability:
Exists
(1 szt.)
-
| Year of production: | 1991 |
| Industry: | Pharma, Suplements |
| Product form: | Capsules, Tablets |
| Packaging types: | Blisters, Kartoniki |
| In our showroom: | No |
| Appraiser's valuation: | No |
| Technical Condition: | C - old but functional, may require minor repairs and adjustments |

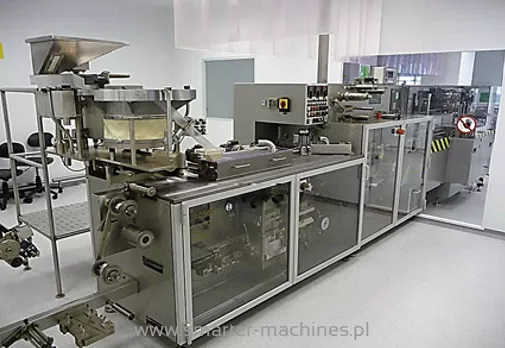

Bosch TLT 1560 C Blister Packaging Line with Cartoner
We offer a Bosch TLT 1560 C blister packaging line, combining a thermoforming blister machine with an integrated cartoning machine, designed for the automatic packaging of products into blister packs and subsequent carton packing.
Manufactured in 1991 by the renowned German company Bosch, this industrial packaging line has been upgraded with the replacement of the original GUK leaflet inserter by a PUZ booklet feeder manufactured by ZMR, allowing the line to work with folded booklets instead of standard leaflets.
The Bosch TLT 1560 C is a reliable solution for manufacturers seeking a used automatic blister packaging and cartoning line capable of handling high-volume production processes. Its robust construction and integrated packaging workflow make it suitable for a wide range of industrial packaging applications.
Key Information
- Manufacturer: Bosch (Germany)
- Model: TLT 1560 C
- Machine type: Blister packaging line with cartoner
- Year of manufacture: 1991
- Installation year: 1992
- Commissioning year: 1992
- Serial number: 631441 / 621447
- Upgrade: Original GUK leaflet inserter replaced with a PUZ booklet feeder by ZMR
Technical Specifications
Blister Forming Section
Thermoforming blister film:
- Maximum roll diameter: 700 mm
- Core diameter: 70 mm
- Film width: 119 mm
Aluminium lidding foil:
- Maximum roll diameter: 300 mm
- Core diameter: 70 mm
- Foil width: 115 mm
Operating Parameters
- Maximum output: up to 120 packs/min
- Sealing temperature range: 0–300°C
- Power supply: 220/380 V, 3-phase, 50 Hz
- Compressed air pressure: 6–7 bar
- Compressed air consumption: 13 m³/h
- Maximum noise level: 80 dB
- Total connected load: 12 kW
Dimensions and Weight
- Dimensions (L × W × H): 15,000 × 7,000 × 2,000 mm
- Weight: approximately 3,280 kg
Applications
The Bosch TLT 1560 C is designed for automatic blister packaging using thermoforming plastic film and aluminium lidding foil, followed by cartoning in a fully integrated production line. The combination of blister forming, sealing, booklet insertion, and cartoning within a single system helps streamline packaging operations and improve production efficiency.
