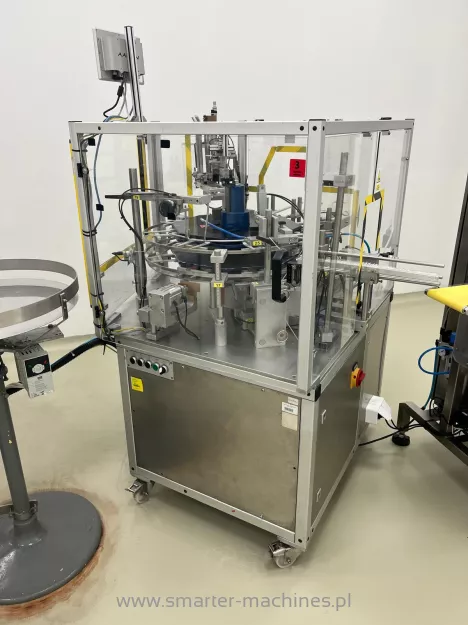

U-E-T COMPACT 4/S Cartoning Machine with Leaflet Feeder – 2005

Features

For sale: U-E-T COMPACT 4/S cartoning machine, manufactured by U-E-T Bernd Siebler GmbH and designed for the automatic forming of unit cartons. The machine is equipped with a leaflet feeding system for inserting information leaflets into cartons.

The machine automatically picks pre-folded carton blanks from the magazine, forms the cartons and folds the bottom flaps. The process also includes leaflet insertion, product loading and carton closing.

The machine operates in an intermittent cycle. Format adjustment is performed using an adjustable format star wheel.

Technical Data

• Manufacturer: U-E-T Bernd Siebler GmbH

• Model: COMPACT 4/S

• Machine type: Compact cartoning machine

• Year of manufacture: 2005

• Electrical supply: 400 V, 50 Hz, 3-phase

• Compressed air connection: 1/4"

• Operating pressure: 6–7 bar

• Compressed air consumption: Approx. 200–250 l/min, up to 350 l/min when additional pneumatic components, such as the leaflet feeder, are operating

Equipment

• Magazine for pre-folded carton blanks.

• Automatic carton blank feeding and forming system.

• Bottom flap folding system.

• Tuck-in carton closing unit.

• Leaflet feeding system for inserting information leaflets.

• Format adjustment using an adjustable format star wheel.

• Safety guards and protective devices described in the machine documentation.

Required Servicing and Additional Costs

To restore the machine to proper working condition, the actuators need to be replaced and the cartoning machine requires basic servicing. The work also includes lubricating the mechanisms and setting up and commissioning the format adjustments.

Estimated additional cost for servicing and spare parts: approx. PLN 2,800. This amount must be added to the purchase price of the machine.

Application

The U-E-T COMPACT 4/S is designed for the automatic forming and closing of unit cartons, with the ability to insert information leaflets. It can be used for packaging products that require a unit carton containing an information leaflet.

The machine documentation includes an EC Declaration of Conformity dated 2005.
